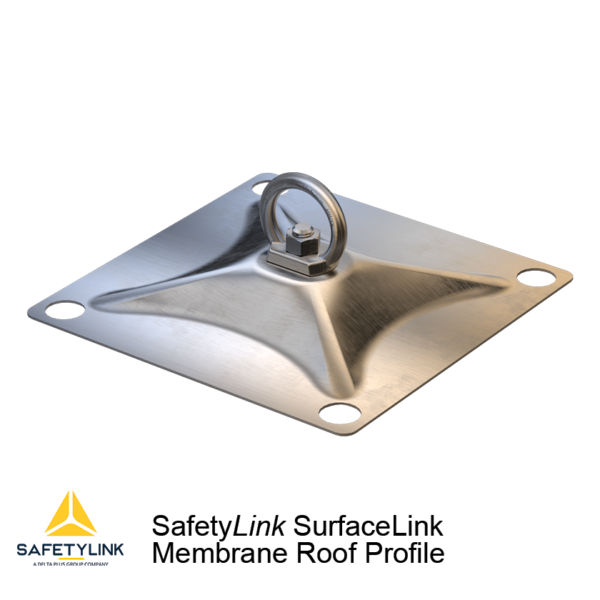

SurfaceLink for Membrane Roof Profile

Product Code: SURFSQ002
What am I used for?

Specifically for use with permanent height safety systems, to be mounted on the surface of membrane roofing.

  • Can be used for rope access (abseiling).
  • The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.
  • Complies with AS/NZS 1891.4 and OSHA 1926.502.

1 Rated 15kn

Multi-Directional 360

SurfaceLink Membrane Roof Profile

Specifically for use with permanent height safety systems, to be mounted on the surface of membrane roofing.

  • Can be used for rope access (abseiling).
  • The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.
  • Complies with AS/NZS 1891.4.
Components
Product Parts
Product Description Quantity   Material
EYEHOOK M16 Eyehook M16 no thread 1 316 SS
NUT M16 Nut: 16mm 1 316 SS
WASHER 70od-SS Washer: 70mm O.D. 1 316 SS
ADV-PLATE-SS-295SQ-Bolt SurfaceLink Plate: 295mmx295mm
(welded M16x35 Set Screw+70od Washer)
1 316 SS

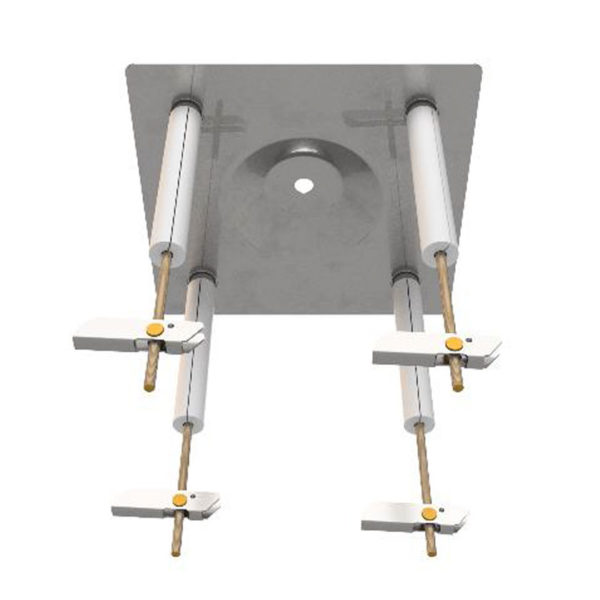

TOGGLE001 Toggle Anchor 300mm with PVC Pipe and Foam 4 PVC Pipe/Foam
