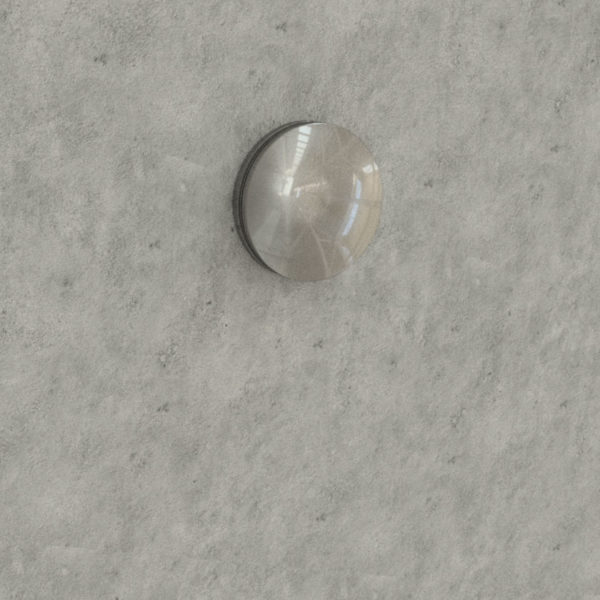

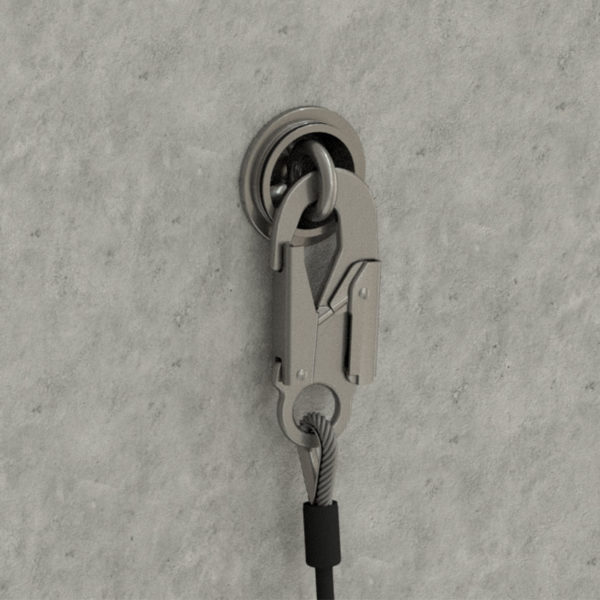

An anchor point designed for use in concrete structures where the eyebolt will remain concealed until needed for use.

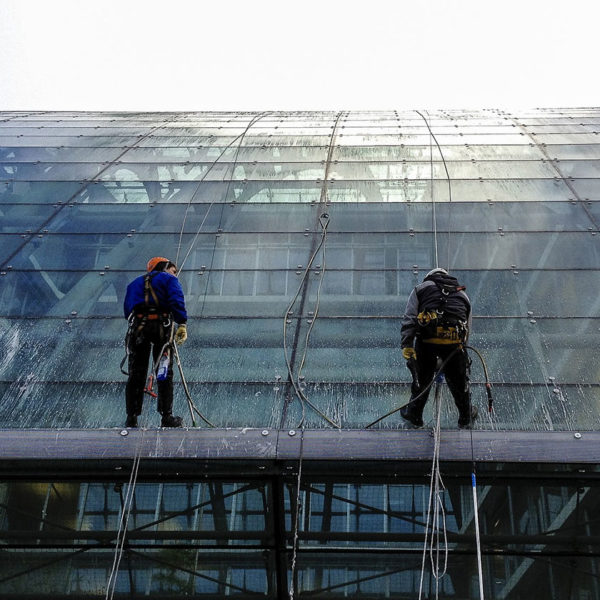

SafetyLink’s patented WindowLink is an anchor point used in concrete structures. The WindowLink can be placed outside or within the building, creating easy access for window maintenance.
A perfect height safety equipment solution in our current climate protecting our investments and working at heights safely.
| Product Code | Product Description | Quantity |
|---|---|---|

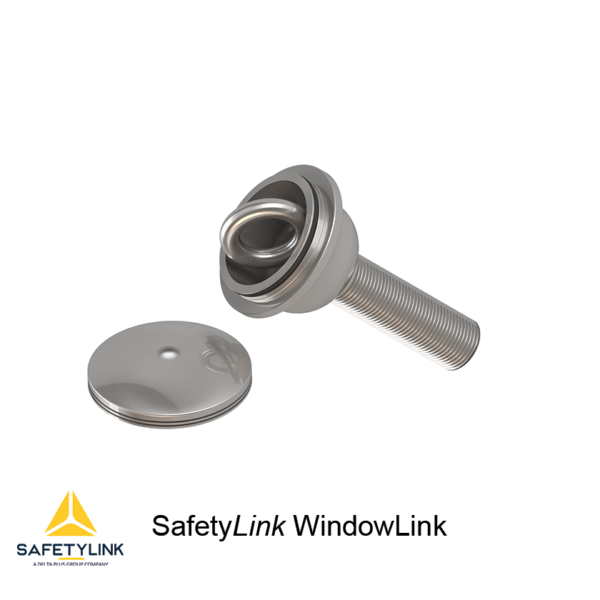

| WINDW001 | WindowLink Complete Unit: 316 S/Steel | 1 |
POSITIONING OF CONCRETE ANCHOR POINT
(refer to appendix diagrams 2 and 3 of the Handbook)
The first ConcreteLink Anchor Point must be in a position easily and safely reached by a secured ladder or a manhole access point.
Testing for Free fall-arrest for one person. 15 kN ultimate strength
1. To comply with Australian Standards each ConcreteLink unit must be tested after installation.
2. Allow sufficient time for curing before testing, see instructions on fastener container.

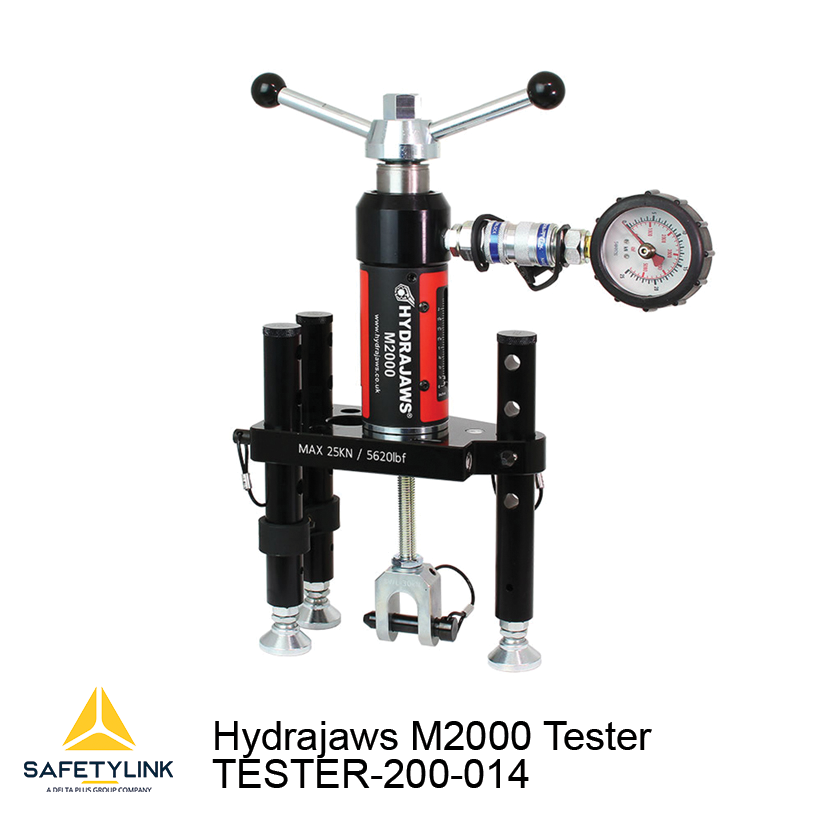

3. Test consists of ultimate pull out force proof loading to 50% of design purpose of anchorage.
4. Recommended chemical anchor: Hilti RE500 or Hilti HY200 as per Hilti Product Supplement Data Sheets. Read instructions on product carefully. The entire surface of the ConcreteLink unit that is in contact with the concrete must have sufficient adhesive gel, as specified on the product.
