- Ladder cages are highly recommended for ladders over 3.5 metres.
- Cage must start between 2000 to 2200mm above base of ladder.
- At the top of ladder, the cage shall extend not less than 1 metre above platform or to the top of the guard railing if installed.
- Ladder cage bars can be cut to achieve required length of the cage.
- Heavy gauge aluminium for superior strength.
- Install with supplied M8 Bolts, Nuts and Washers.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit ladders are manufactured to AS 1657:2018 Standards.

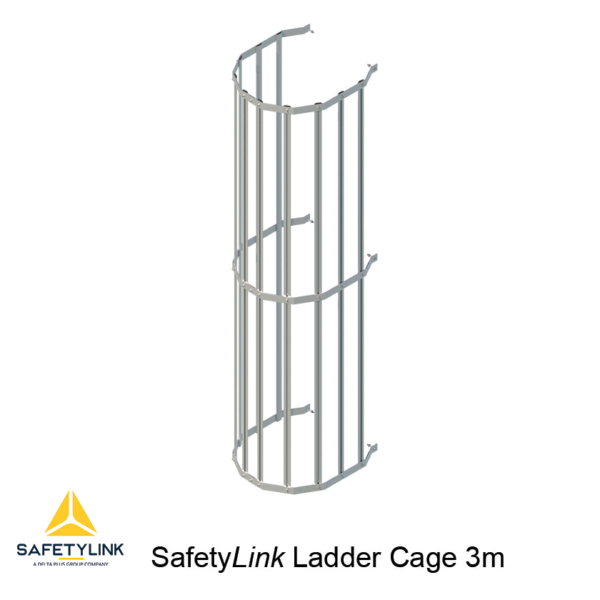

FASTFIT LADDER SYSTEMS - LADDER CAGE
Product Code: LADER002.CAGE.3
What am I used for?
FASTFIT LADDER SYSTEMS
- Ladder cages are highly recommended for ladders over 3.5 metres.
- Cage must start between 2000 to 2200mm above base of ladder.
- At the top of ladder, the cage shall extend not less than 1 metre above platform or to the top of the guard railing if installed.
- Ladder cage bars can be cut to achieve required length of the cage.
- Heavy gauge aluminium for superior strength.
- Install with supplied M8 Bolts, Nuts and Washers.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit ladders are manufactured to AS 1657:2018 Standards.
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| LADER002.CAGE.HOOP.02 | Ladder Cage Hoops + Fixings | Aluminium | 3 |
| LADER002.CAGE.3000 | Ladder Cage Bars: 2000mm | Aluminium | 10 |
| LADER002.CAGE.CAP | Ladder Cage Bar End Caps | Plastic MDPE | 20 |
| BOLT-M8x20mm Cup HD | Bolt: M8 x 20mm Cup Head | 316SS | 33 |
| BOLT-M8x60mm Cup HD | Bolt: M8 x 60mm Cup Head | 316SS | 6 |
| NUT M8 Flanged_316 | Flanged Nut: M8 | 316SS | 39 |
