- Handrail modules for angled ladder – 75 degrees.
- Heavy gauge aluminium for superior strength.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit ladders are manufactured to AS 1657:2018 Standards.

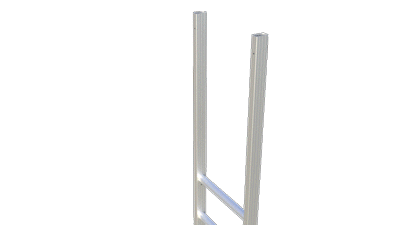

FASTFIX LADDER SYSTEMS - Hand Rail Set 75⁰
Product Code: LADER002.HR.75.K
What am I used for?
PERMANENT LADDERS
- Handrail modules for angled ladder – 75 degrees.
- Heavy gauge aluminium for superior strength.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit ladders are manufactured to AS 1657:2018 Standards.
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| LADER002.HR.75.01 | 75° Handrail | Aluminium | 2 |
| BOLT-M8x90mm Cup HD | Bolt: M8 x 90mm Cup Head | 316SS | 4 |
| NUT M8 Flanged_316 | Flanged Nut: M8 | 316SS | 4 |
SafetyLink’s Permanent Ladder System shall be subject to periodic inspections and certification. Inspection and certified must be carried out every 12 months or less if required by a regulator. These inspections must be completed by a competent person. For inspection requirements refer to SafetyLink’s Installation Handbooks and Certification Checklists.
Load ratings: The vertical fall arrest is rated as a one person usage, 15kN.
