- The top platform will be level with top of ladder rung (within 3 degrees).
- Available in in 1000mm and 2000mm.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit ladders are manufactured to AS 1657:2018 Standards.

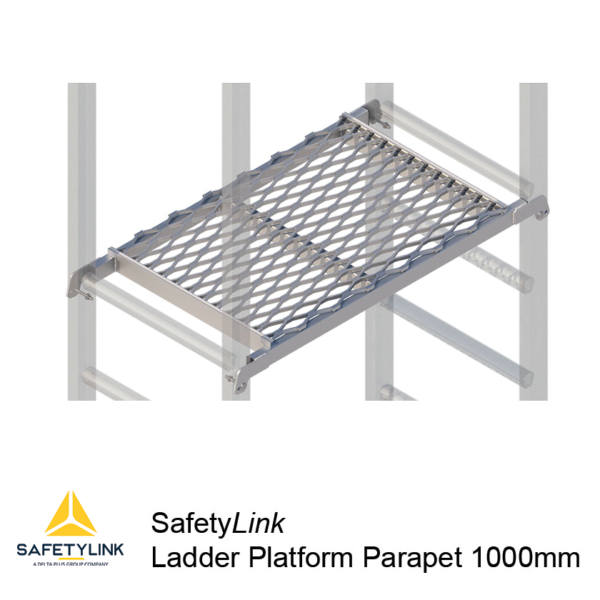

FASTFIX LADDER SYSTEMS - Ladder Parapet Platform
Product Code: LADER002.PLT.1M.K
Product Code: LADER002.PLT.2M.K
What am I used for?
FASTFIX LADDER SYSTEMS
- The top platform will be level with top of ladder rung (within 3 degrees).
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit ladders are manufactured to AS 1657:2018 Standards.
Components
| COMPLETE UNIT – PRODUCT CODE: LADER002.PLT.1M.K | Weight: 8kg | ||
| Product Code | Description | Material | Qty |
| LADER002.PLT.1M.01 | Platform Grating 1000mm | Aluminium | 1 |
| BOLT-M8x60mm Cup HD | Bolt: M8x60mm Cup Head | 316SS | 4 |
| NUT M8 Flanged_316 | Flanged Nut: M8 | 316SS | 4 |
| GUARD_KR – Cut | Kneerail 1150mm | Aluminium | 4 |
| GUARD_KR.CAP | Kneerail Caps | 316SS | 8 |
| SCREW 12-14x50mm | Screw: 12-14x50mm Self Tapping | 316SS | 16 |
| COMPLETE UNIT – PRODUCT CODE: LADER002.PLT.2M.K | Weight: 13kg | ||
| Product Code | Description | Material | Qty |
| LADER002.PLT.2M.01 | Platform Grating 2000mm Kit | Aluminium | 1 |
| BOLT-M8x60mm Cup HD | Bolt: M8x60mm Cup Head | 316SS | 4 |
| NUT M8 Flanged_316 | Flanged Nut: M8 | 316SS | 4 |
| GUARD_KR – Cut | Kneerail 2150mm | Aluminium | 4 |
| GUARD_KR.CAP | Kneerail Caps | 316SS | 8 |
| SCREW 12-14x50mm | Screw: 12-14x50mm Self Tapping | 316SS | 16 |
