Innovative Fall Protection

Safety Centre – Training

PigLink Rope Guide

Product Code: PIGLNK001
Product Code: PIGLNK002
Product Code: PIGLNK003
What am I used for?

Manage your ropeline when working at heights with SafetyLink’s PigLink Rope Guide.

  • 316 Stainless Steel.
  • Can be used for Concrete and Steel structures.
  • PigLink’s should be installed at intervals of between 20m and 30m to restrain an abseiler’s rope lateral movement. Depending on the application, smaller intervals may be required.
    * The PigLink is NOT a single point anchor or load rated.

Install Guide

Data Sheet

Product Flyer

Email Enquiry
PigLink Rope Guide

Manage your ropeline when working at heights with SafetyLink’s PigLink Rope Guide.

  • 316 Stainless Steel.
  • Can be used for Concrete and Steel structures.
  • PigLink’s should be installed at intervals of between 20m and 30m to restrain an abseiler’s rope lateral movement. Depending on the application, smaller intervals may be required.
    * The PigLink is NOT a single point anchor or load rated.

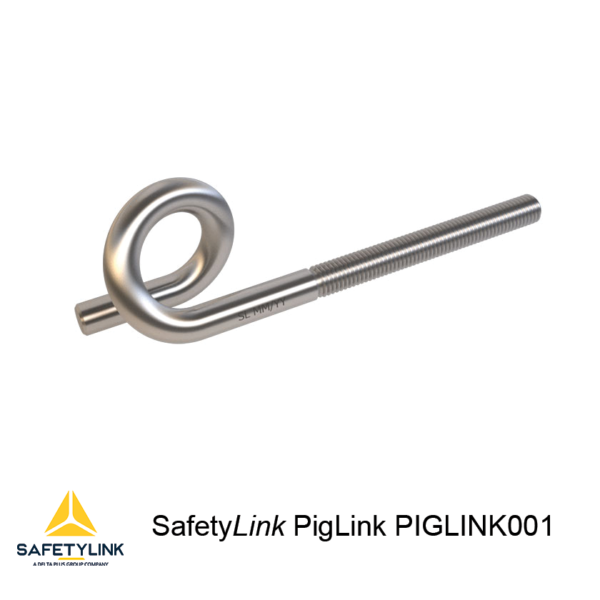

PigLink: PIGLK001
Product Code Product Description Quantity     Material
PIGLK001 PigLink Rope Guide – M12x120mm 1 316 Stainless Steel
PigLink: PIGLK002
Product Code Product Description Quantity     Material
PIGLK001 PigLink Rope Guide – M12x120mm 1 316 Stainless steel
NUT M12 Flanged_316 Nut: M12 Flanged 2 316 Stainless Steel

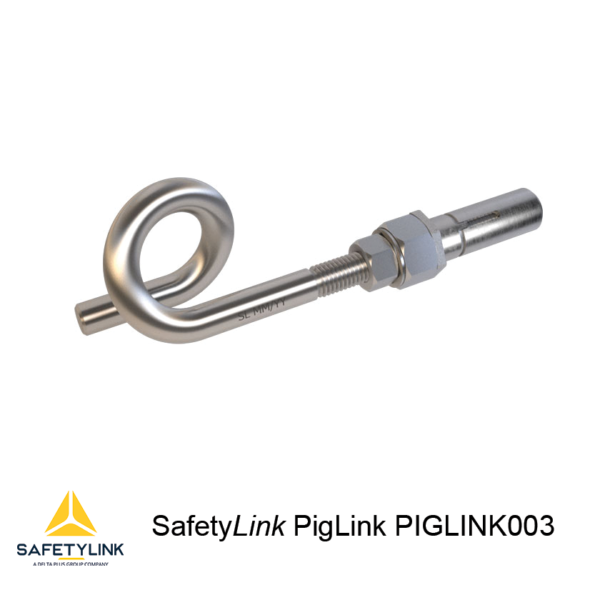

PigLink: PIGLK003
Product Code Product Description Quantity     Material
PIGLK001 PigLink Rope Guide – M12x120mm 1 316 Stainless Steel
STEELLINK-M12.02 Base Cap, M12, SteelLink 1 316 Stainless Steel
STEELLINK-M12.01 End Cap, M12x1.75 SteelLink 1 316 Stainless Steel
NUT M16_316 Nut: M16 1 316 Stainless Steel
WASHER M12_Spring_316 Washer: M12 Spring 1 316 Stainless Steel
WASHER M12_316 Washer: M12 1 316 Stainless Steel
NUT M12_316 Nut: M12 1 316 Stainless Steel
