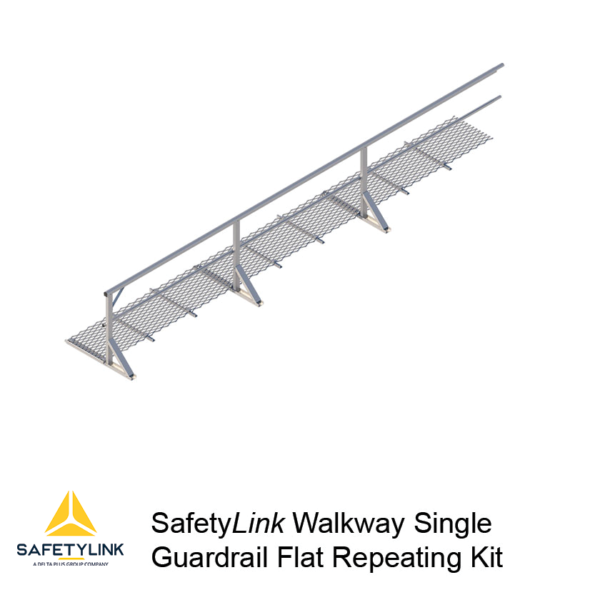

FASTFIT WALKWAY SYSTEMS - SINGLE GUARDRAIL FLAT REPEATING KIT

Product Code: GUARDK152
What am I used for?
  • Six (6) metre flat walkway repeating kit to extend walkway length.
  • Single guardrail.
  • Suitable for roof pitches 0 to 7 degrees. For pitches over 7 degrees use GUARDK162.
  • Heavy gauge aluminium for superior strength.
  • FastFit walkways are manufactured to AS 1657:2018 Standards.

Install Guide

Data Sheet

Product Flyer

Email Enquiry
FASTFIT WALKWAY SYSTEMS
  • Six (6) metre flat walkway repeating kit to extend walkway length.
  • Single guardrail.
  • Suitable for roof pitches 0 to 7 degrees. For pitches over 7 degrees use GUARDK162.
  • Heavy gauge aluminium for superior strength.
  • FastFit walkways are manufactured to AS 1657:2018 Standards.
Components
Product Code Product Description Material
 Qty
AL_GRATING 13mm Six (6) metre Walkway Grating Aluminium 1
GUARD_HR Six (6) metre Handrail Profile Aluminium 1
GUARD_KR Six (6) metre Kneerail Profile Aluminium 1
SCREW 12-14x20mm Screw: 12-14 x 20mm Self Tapping Tek Screw Galvanised 12
SCREW 12-14x35mm Screw: 12-14 x 35mm Self Tapping Tek Screw Galvanised 18
AL_GRATING DISC Grating Disc Aluminium 18
RIVET_5x22mm Tri-fold Rivets 5.0x22mm Aluminium 12
FOAM-TAPE-SQUARE Foam Tape: 40mm x 40mm x 1.6mm EPDM 12
GUARD001.WW.POST.07 Single Walkway Post Kit *Check Pitch Aluminium 3
GUARD_JOIN.595 Walkway Joiner Bar 595mm Aluminium 1
GUARD_HR.SPL.245 Handrail Splice 245mm Aluminium 1
GUARD_KR.SPL.245 Kneerail Splice 245mm Aluminium 1
GUARD_WALK.CHL.700 Walkway Support Batten 700mm Aluminium 6
