- Six (6) metre flat walkway starting kit.
- No guardrail.
- To extend walkway length add extra six (6) metre repeating kits (GUARDK102).
- Suitable for roof pitches 0 to 7 degrees. For pitches over 7 degrees use GUARDK111.
- FastFit walkways are manufactured to AS 1657:2018 Standards.

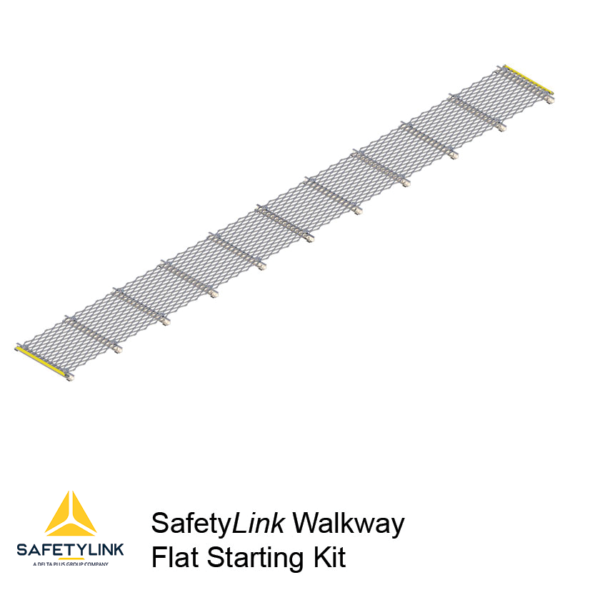

FASTFIT WALKWAY SYSTEMS - FLAT STARTING KIT
Product Code: GUARDK101
What am I used for?
FASTFIT WALKWAY SYSTEMS
- Six (6) metre flat walkway starting kit.
- No guardrail.
- To extend walkway length add extra six (6) metre repeating kits (GUARDK102).
- Suitable for roof pitches 0 to 7 degrees. For pitches over 7 degrees use GUARDK111.
- FastFit walkways are manufactured to AS 1657:2018 Standards.
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| AL_GRATING 13mm | Six (6) metre Walkway Grating | Aluminium | 1 |
| SCREW 12-14x20mm | Screw: 12-14 x 20mm Self Tapping Tek Screw | Galvanised | 4 |
| SCREW 12-14x35mm | Screw: 12-14 x 35mm Self Tapping Tek Screw | Galvanised | 22 |
| AL_GRATING DISC | Grating Disc | Aluminium | 22 |
| RIVET_5x22mm | Tri-fold Rivets 5.0x22mm | Aluminium | 22 |
| FOAM-TAPE-SQUARE | Foam Tape: 40mm x 40mm x 1.6mm | EPDM | 22 |
| GUARD_END.Y.595 | Walkway Endbar 595mm Yellow | Aluminium | 2 |
| GUARD_WALK.CHL.700 | Walkway Support Batten 700mm | Aluminium | 11 |
