- Six (6) metre levelled walkway starting kit.
- To extend walkway length add extra six (6) metre repeating kits GUARDK182.
- Double guardrail.
- AS1657 requires walkways on roof pitches over seven (7) degrees to be levelled.
- Custom made for roof pitches up to 25 degrees.
- Heavy gauge aluminium for superior strength.
- FastFit walkways are manufactured to AS 1657:2018 Standards.

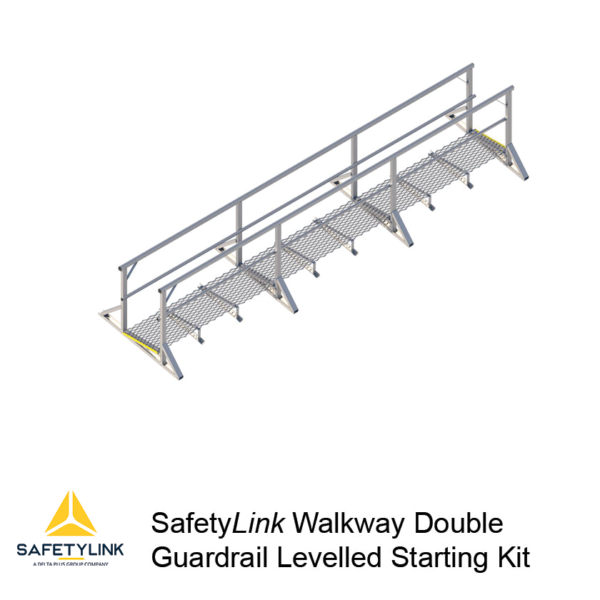

FASTFIT WALKWAY SYSTEMS - DOUBLE GUARDRAIL LEVELLED STARTING KIT
Product Code: GUARDK181
What am I used for?
FASTFIT WALKWAY SYSTEMS
- To extend walkway length add extra six (6) metre repeating kits GUARDK182.
- Double guardrail.
- AS1657 requires walkways on roof pitches over seven (7) degrees to be levelled.
- Custom made for roof pitches up to 25 degrees.
- Heavy gauge aluminium for superior strength.
- FastFit walkways are manufactured to AS 1657:2018 Standards.
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| AL_GRATING 13mm | Six (6) metre Walkway Grating | Aluminium | 1 |
| GUARD_HR | Six (6) metre Handrail Profile | Aluminium | 2 |
| GUARD_KR | Six (6) metre Kneerail Profile | Aluminium | 2 |
| GUARD_HR.CAP | Handrail Endcap | Aluminium | 4 |
| GUARD_KR.CAP | Kneerail Endcap | Aluminium | 4 |
| GUARD_HR.BRACE | Handrail Brace | Aluminium | 4 |
| SCREW 12-14x20mm | Screw: 12-14 x 20mm Self Tapping Tek Screw | Galvanised | 12 |
| SCREW 12-14x35mm | Screw: 12-14 x 35mm Self Tapping Tek Screw | Galvanised | 20 |
| AL_GRATING DISC | Grating Disc | Aluminium | 20 |
| GUARD001.WW.POST.10 | Double Levelled Walkway Post Kit *Check Pitch | Aluminium | 4 |
| GUARD001.SPRT_WELD | Walkway Support Batten – Welded | Aluminium | 6 |
| GUARD_END.Y.595 | Walkway Endbar 595mm Yellow | Aluminium | 2 |
