- Steps can be used as an intermediate step for heights up to 450mm or they can be used as bridges to cross over piping/conduits etc.
- Step down to ground must not exceed 300mm.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit ladders are manufactured to AS 1657:2018 Standards.

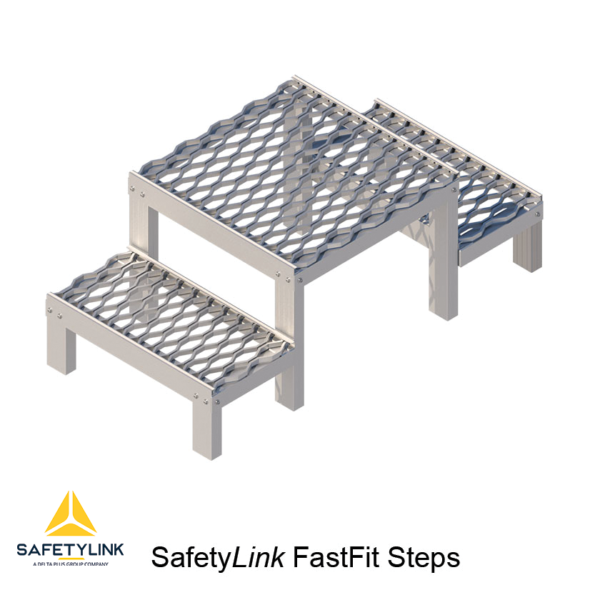

FASTFIT LADDER SYSTEMS - LADDER STEPS
Product Code: STAIRFF1-STP600B
What am I used for?
FASTFIT LADDER SYSTEMS
- Steps can be used as an intermediate step for heights up to 450mm or they can be used as bridges to cross over piping/conduits etc.
- Step down to ground must not exceed 300mm.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit ladders are manufactured to AS 1657:2018 Standards.
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| STAIRFF1-STP600-01 | 600mm Bridge Weldment | Aluminium | 1 |
| STAIRFF1-STP300-01 | 300mm Bridge Weldment | Aluminium | 2 |
| AL_ANGLE 50x50x3 (600) | Angle: 5050x3mm Length:600mm | Aluminium | 4 |
| SCREW 12-14x20mm | Screw: 12-14x20mm Self Tapping | Galvanised | 40 |
| RIVET_5x22mm | Rivet: 5 x 22mm | Aluminium | 12 |
| FOAM-TAPE-SQUARE | Foam Tape: 40 x 40 x 1.6mm | EPDM | 12 |
