- Top Platform must be level with top of ladder rung (within 3 degrees).
- Step down to roof/ground must not exceed 300mm.
- Adjustable.
- Suitable for roof pitches 0 to 15 degrees only.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit ladders are manufactured to AS 1657:2018 Standards.

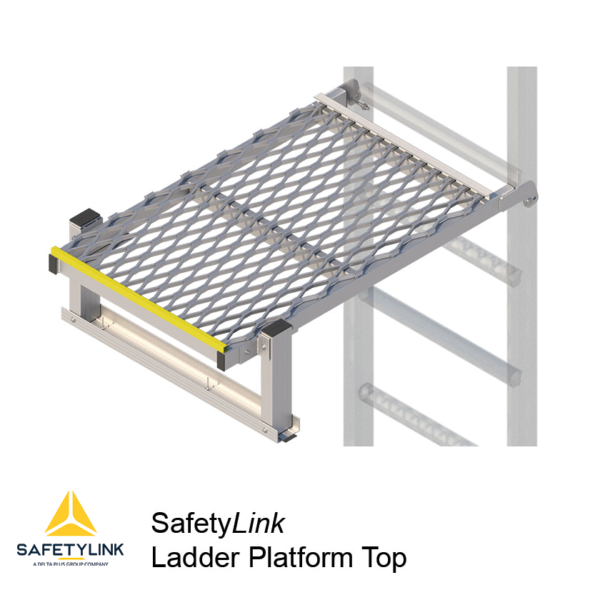

FASTFIT LADDER SYSTEMS - Ladder Top Platform
Product Code: LADER002.PLT.TOP
What am I used for?
FASTFIT LADDER SYSTEMS
- Platform Landing Top 1000mm.
- Required if exit area not level (see installation instructions).
- Heavy gauge aluminium for superior strength.
- The building or structure for the anchorage should be assessed by an Engineer, unless it is clear to a competent height safety installer that the structure is adequate.
- SafetyLink ladders are manufactured to AS 1657:2018 Standards.
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| LADER002.PLT.TOP.01 | Top Platform Kit | Aluminium | 1 |
| SCREW 12-14x20mm | Screw: 12-14x20mm Self Tapping | Galvanised | 12 |
| BOLT-M8X60mm Cup HD | Bolt: M8x60mm Cup Head | 316SS | 2 |
| NUT M8 Flanged_316 | Flanged Nut: M8 | 316SS | 2 |
| RIVET_5x22mm | Rivet: 0.5 x 22mm | Aluminium | 3 |
| FOAM-TAPE-SQUARE | Foam Tape: 40x40x1.6mm | EPDM | 3 |
SafetyLink’s Permanent Ladder System shall be subject to periodic inspections and certification. Inspection and certified must be carried out every 12 months or less if required by a regulator. These inspections must be completed by a competent person. For inspection requirements refer to SafetyLink’s Installation Handbooks and Certification Checklists.
Load ratings: The vertical fall arrest is rated as a one person usage, 15kN.
