- Midway Rest Platform with angle supports and self closing gate.
- Required to be not more than 4.5 metres apart for 75° and 90° ladders.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit platforms are manufactured to AS 1657:2018 Standards.

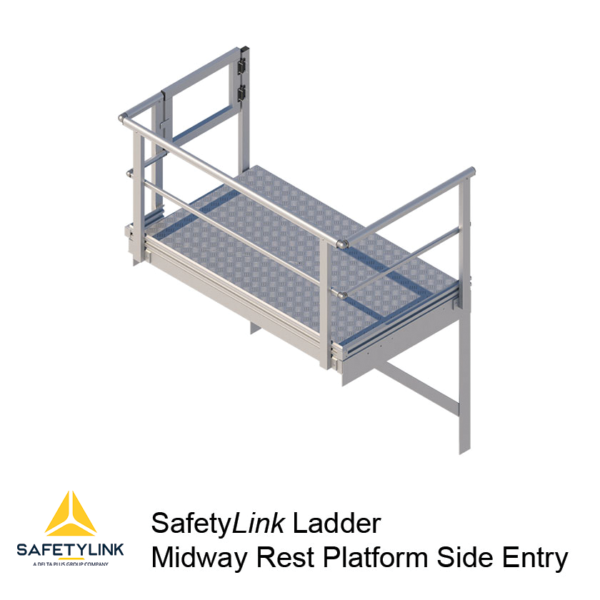

FASTFIT LADDER SYSTEMS - LADDER MIDWAY REST PLATFORM - SIDE ENTRY
Product Code: LADER002.PLT.MID.S
What am I used for?
FASTFIT LADDER SYSTEMS
- Midway Rest Platform with angle supports and self closing gate.
- Required to be not more than 4.5 metres apart for 90° ladder.
- Required to be not more than 6 metres apart for 75° ladder.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit platforms are manufactured to AS 1657:2018 Standards.
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| LADER002.PLT.MID.S | Platform: Midway Rest Kit | Aluminium | 1 |
| GUARD001.GATE_700 | Gate: 700mm | Aluminium | 1 |
| NUT M8 Flanged_316 | Flanged Nut: M8 | 316SS | 20 |
| BOLT-M8x30mm Cup HD | Bolt: M8x30mm Cup Head | 316SS | 14 |
| SCREW 12-14x20mm | Screw: 12-14x20mm Self Tapping | Galvanised | 16 |
| SCREW 12-14x50mm | Screw: 12-14x50mm Self Tapping | Galvanised | 8 |
| BOLT-M8X20mm Cup HD | Bolt: M8x20mm Cup Head | 316SS | 4 |
| GUARD_HR.ELBW | Handrail Elbow Joint Kit | Aluminium | 2 |
| GUARD_KR.ELBW | Kneerail Elbow Joint Kit | Aluminium | 2 |
