- Top Platform for Ladderhead with angle supports.
- For use on roof pitches 0 to 8 degrees.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit platforms are manufactured to AS 1657:2018 Standards.

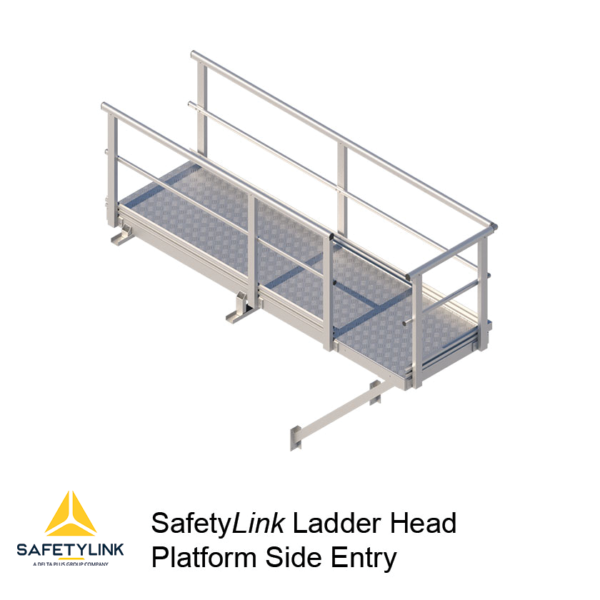

FASTFIT LADDER SYSTEMS - LADDER HEAD PLATFORM - SIDE ENTRY
Product Code: LADER002.PLT.TOP.3200
What am I used for?
FASTFIT LADDER SYSTEMS
- Top Platform for Ladderhead with angle supports.
- For use on roof pitches 0 to 8 degrees.
- FastFit ladder system is designed for single person use and rated for maximum 150kg.
- FastFit platforms are manufactured to AS 1657:2018 Standards.
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| LADER002.PLT.TOP.3200.01 | Platform: Ladderhead Top Side Entry | Alumininum | 1 |
| GUARD001.GATE_700 | Gate: 700mm | Alumininum | 1 |
| NUT M8 Flanged_316 | Flanged Nut: M8 | 316SS | 24 |
| BOLT-M8x30mm Cup HD | Bolt: M8x30mm Cup Head | 316SS | 18 |
| SCREW 12-14x20mm | Screw: 12-14x20mm Self Tapping | Galvanised | 28 |
| SCREW 12-14x50mm | Screw: 12-14x50mm Self Tapping | Galvanised | 14 |
| BOLT-M8X20mm Cup HD | Bolt: M8x20mm Cup Head | 316SS | 6 |
| RIVET_5x22mm | Rivet: 05 x 22mm | Aluminium | 6 |
| FOAM-TAPE-SQUARE | Foam Tape: 40 x 40 x 1.6mm | 6 | |
| GUARD_HR.ELBW | Handrail Elbow Joint Kit | Aluminium | 1 |
| GUARD_KR.ELBW | Kneerail Elbow Joint Kit | Aluminium | 1 |
