▪ Heavy gauge aluminium for superior strength.
▪ Install with supplied M8 Bolts, Nuts and Washers.
▪ FastFit ladder system is designed for single person use and rated for maximum 150kg.
▪ FastFit ladders are manufactured to AS 1657:2018 Standards.

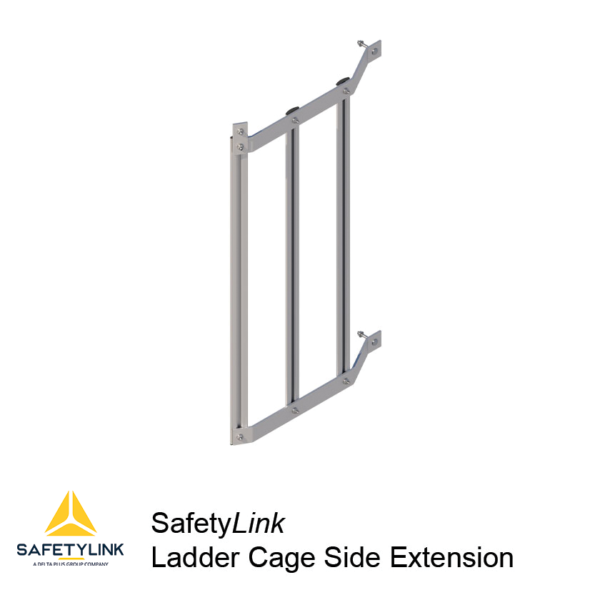

FASTFIT LADDER SYSTEMS - LADDER CAGE EXTENSION
Product Code: LADER002.CAGE.EXTN
What am I used for?
FASTFIT LADDER SYSTEMS
▪ Heavy gauge aluminium for superior strength.
▪ Install with supplied M8 Bolts, Nuts and Washers.
▪ FastFit ladder system is designed for single person use and rated for maximum 150kg.
▪ FastFit ladders are manufactured to AS 1657:2018 Standards.
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| LADER002.CAGE.JOIN | Ladder Cage Join Plate | Aluminium | 1 |
| LADER002.CAGE.EXTN.01 | Half Ladder Hoops | Aluminium | 3 |
| LADER002.CAGE.HOOP.SIDE | Side Extension Ladder Hoop | Aluminium | 2 |
| CAGE.BARS.1000 | 1000mm Cage Bars | Aluminium | 3 |
| BOLT-M8x60mm Cup HD | Bolt: M8x60mm Cup HD | 316SS | 2 |
| BOLT-M8x30mm Cup HD | Bolt: M8x30mm Cup HD | 316SS | 2 |
| BOLT-M8x20mm Cup HD | Bolt: M8x20mm Cup HD | 316SS | 5 |
| NUT M8 Flanged_316 | Flanged Nut: M8 | 316SS | 9 |
