- Heavy duty folding roof mount guardrail kit, available in three lengths.
- Single guardrail.
- For installation on roof sheeting with pitches 0 to 25 degrees, for roof pitch greater than 12 degrees, a second Kneerail is required.
- High strength gauge aluminium for superior strength.
- FastFit walkways are manufactured to AS 1657:2018 Standards.

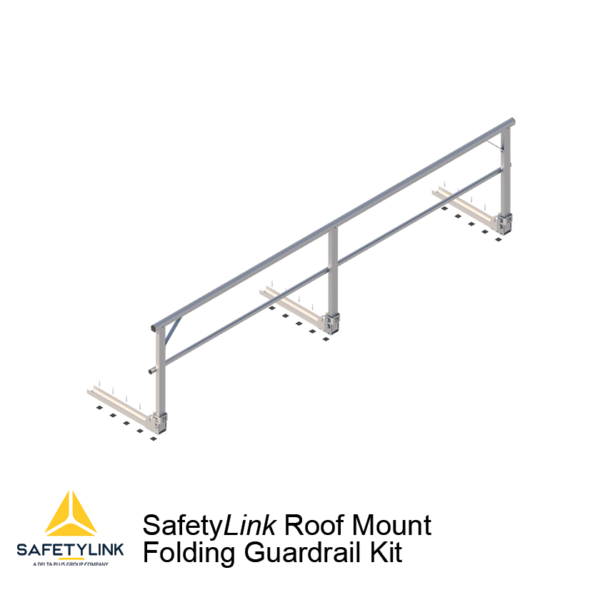

FASTFIT GUARDRAIL SYSTEMS - Roof Mount Folding Guardrail Kit
Product Code: GUARDK192
Product Code: GUARDK193
Product Code: GUARDK194
What am I used for?
FASTFIT GUARDRAIL SYSTEMS
- Heavy duty folding roof mount guardrail kit, available in three lengths.
- Single guardrail.
- For installation on roof sheeting with pitches 0 to 25 degrees, for roof pitch greater than 12 degrees, a second Kneerail is required.
- High strength gauge aluminium for superior strength.
- FastFit walkways are manufactured to AS 1657:2018 Standards.
Components
TWO (2) METRE COMPLETE UNIT – PRODUCT CODE: GUARDK192
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| GUARD_HR.2m | Handrail Profile: 2000mm | Aluminium | 1 |
| GUARD_KR.2m | Kneerail Profile: 2000mm | Aluminium | 1 |
| SCREW 12-14x20mm | Screw: 12-14 x 20mm Self Tapping Tek Screw | Galvanised | 4 |
| GUARD001.WW.POST.05 | Post Kit – Folding Roof Mount | Aluminium | 2 |
| GUARD_HR.BRACE_BEND | Handrail Brace | Aluminium | 2 |
| GUARD_HR.CAP | Handrail End Cap | Plastic MDPE | 2 |
| GUARD_KR.CAP | Kneerail End Cap | Plastic MDPE | 2 |
THREE (3) METRE COMPLETE UNIT – PRODUCT CODE: GUARDK193
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| GUARD_HR.3m | Handrail Profile: 3000mm | Aluminium | 1 |
| GUARD_KR.3m | Kneerail Profile: 3000mm | Aluminium | 1 |
| SCREW 12-14x20mm | Screw: 12-14 x 20mm Self Tapping Tek Screw | Galvanised | 4 |
| GUARD001.WW.POST.05 | Post Kit – Folding Roof Mount | Aluminium | 3 |
| GUARD_HR.BRACE_BEND | Handrail Brace | Aluminium | 2 |
| GUARD_HR.CAP | Handrail End Cap | Plastic MDPE | 2 |
| GUARD_KR.CAP | Kneerail End Cap | Plastic MDPE | 2 |
FOUR (4) METRE COMPLETE UNIT – PRODUCT CODE: GUARDK194
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| GUARD_HR.4m | Handrail Profile: 4000mm | Aluminium | 1 |
| GUARD_KR.4m | Kneerail Profile: 4000mm | Aluminium | 1 |
| SCREW 12-14x20mm | Screw: 12-14 x 20mm Self Tapping Tek Screw | Galvanised | 4 |
| GUARD001.WW.POST.05 | Post Kit – Folding Roof Mount | Aluminium | 4 |
| GUARD_HR.BRACE_BEND | Handrail Brace | Aluminium | 2 |
| GUARD_HR.CAP | Handrail End Cap | Plastic MDPE | 2 |
| GUARD_KR.CAP | Kneerail End Cap | Plastic MDPE | 2 |
