Cast In Cage
DAVIT_BASE05
For use in concrete

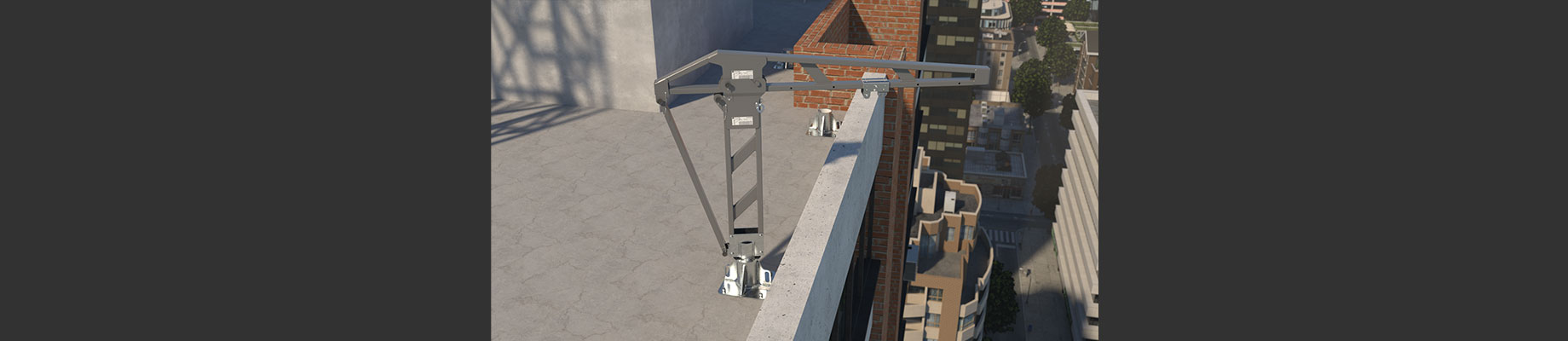

SafetyLink’s NEW patent pending FastFit Davit provides access to raise or lower workers from heights (roof tops). The FastFit Davit is a temporary anchor suitable for having one user suspended from the shuttle and a second user connected to either of the secondary attachment points (Mast or Base). With a maximum height and reach of 2.2 metres the Davit allows access over parapet walls and balustrades with ease.
- Australian Made.
- Patent Pending.
- Shuttles traverse back and forth, for maximum adjustment.
- Davit breaks down into 3 easily transportable components.
- Can be used for material handling of up to 400kg (Refer installation handbook for further details).

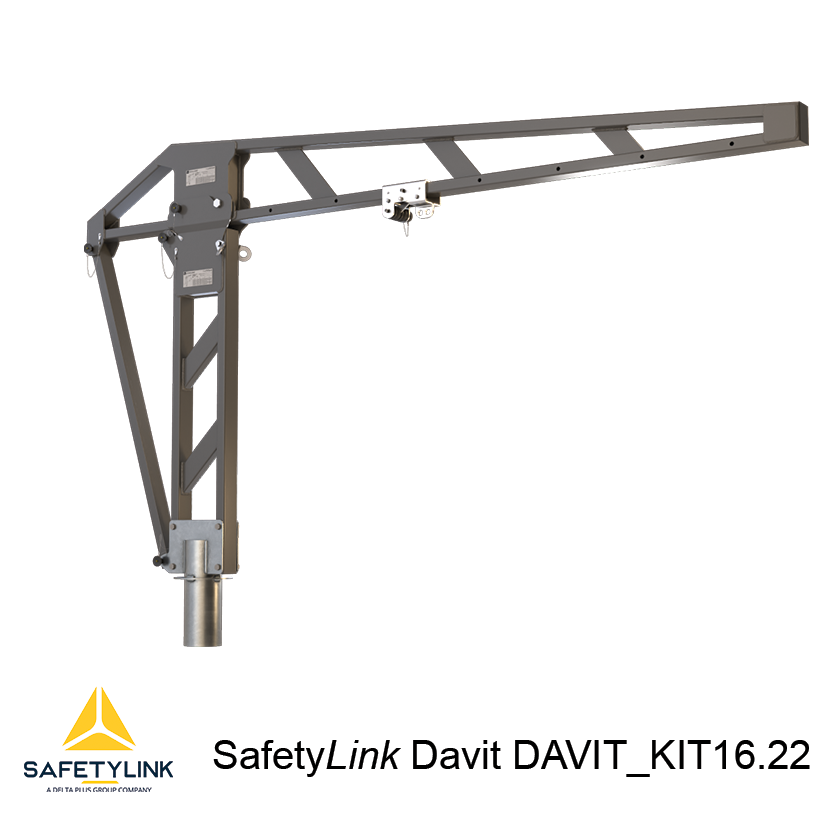

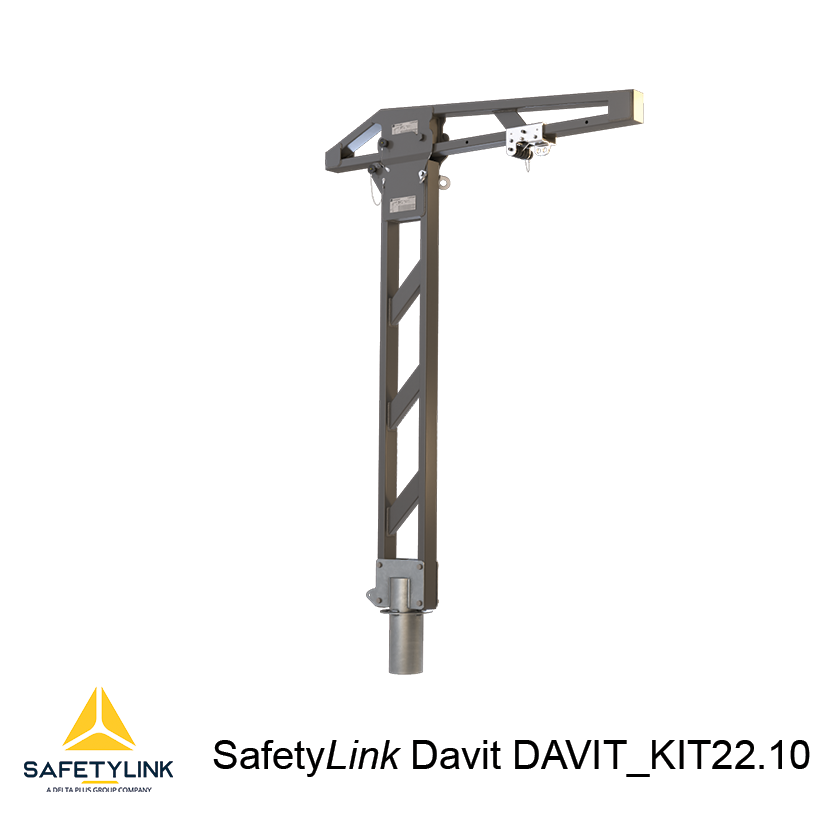

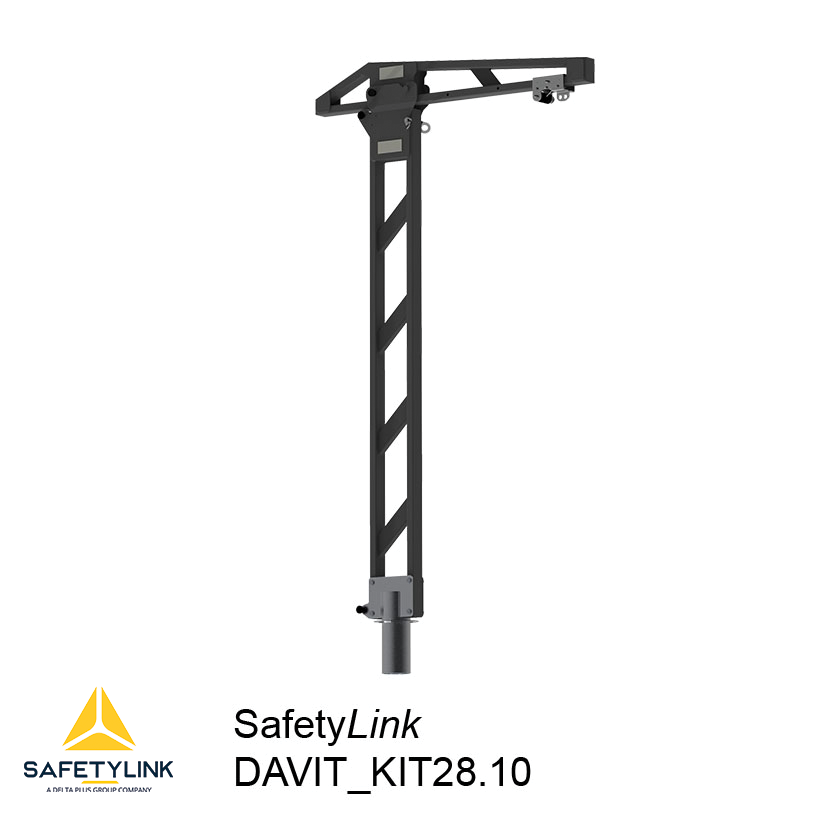

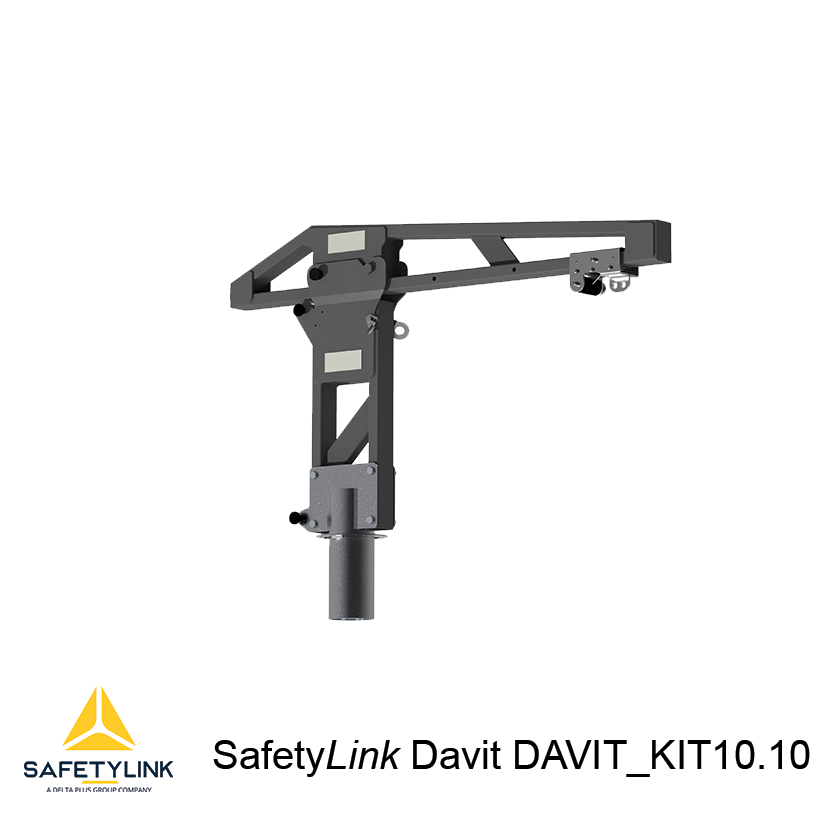

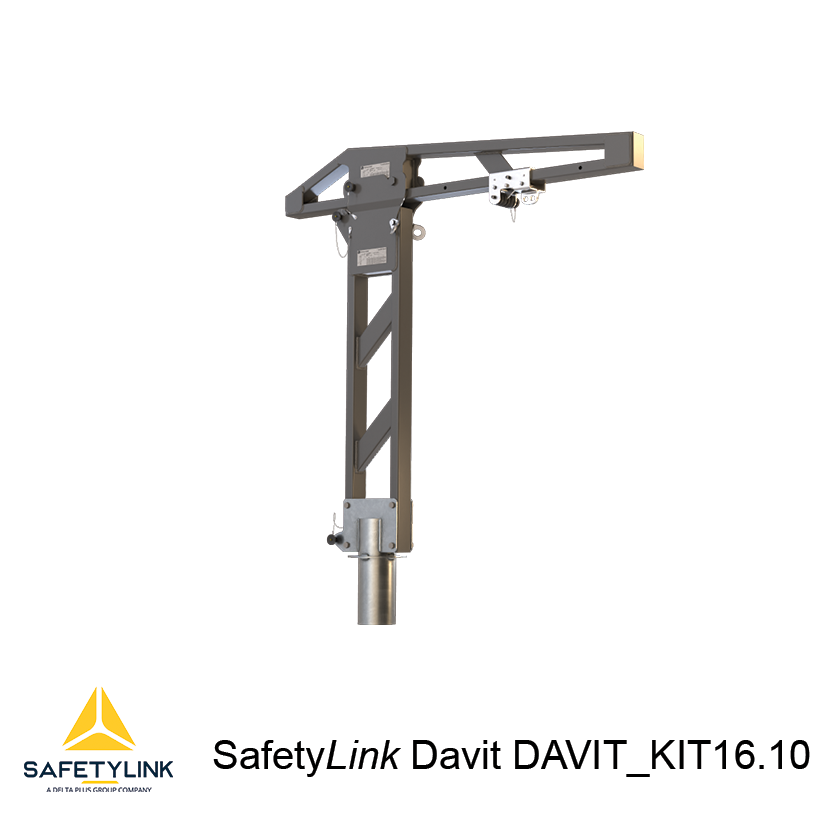

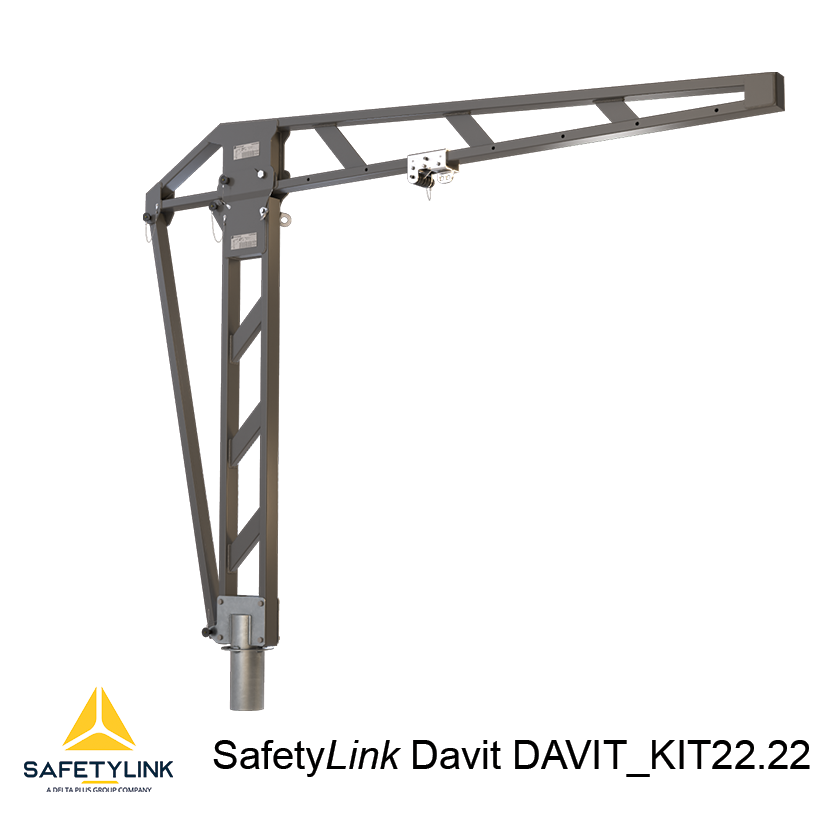

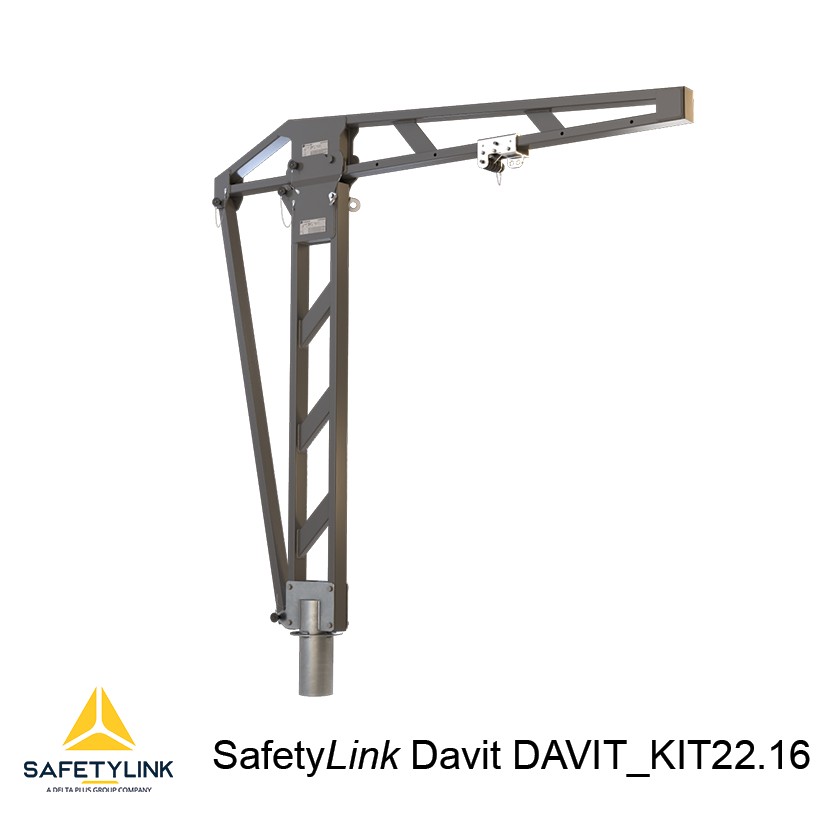

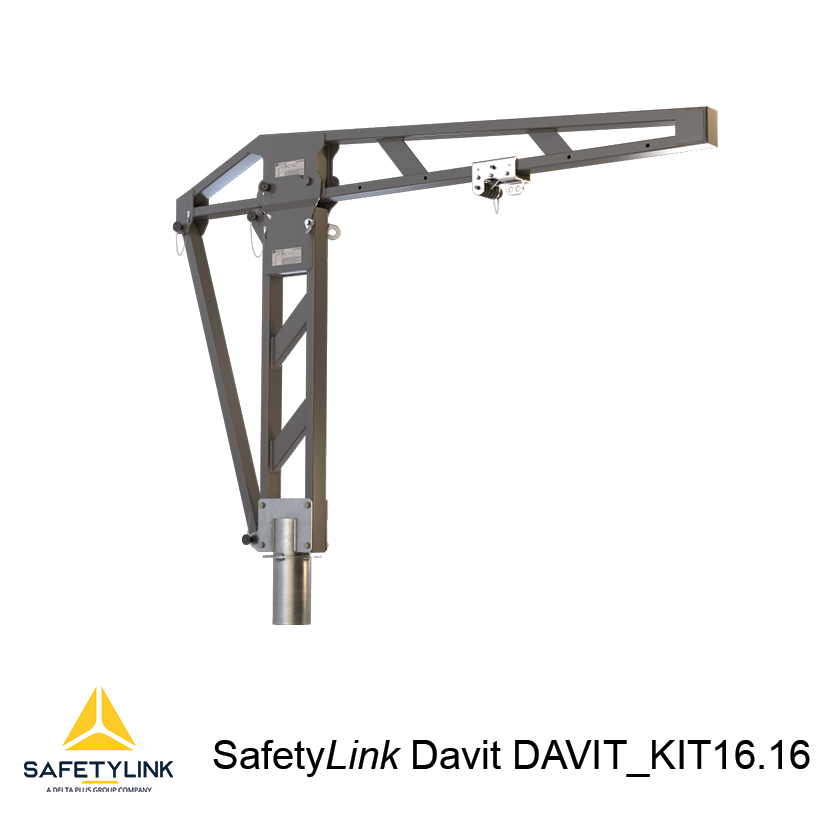

- Three Boom sizes 1m, 1.6m and 2.2 metres. Two Mast heights 1.6m or 2.2 metres.

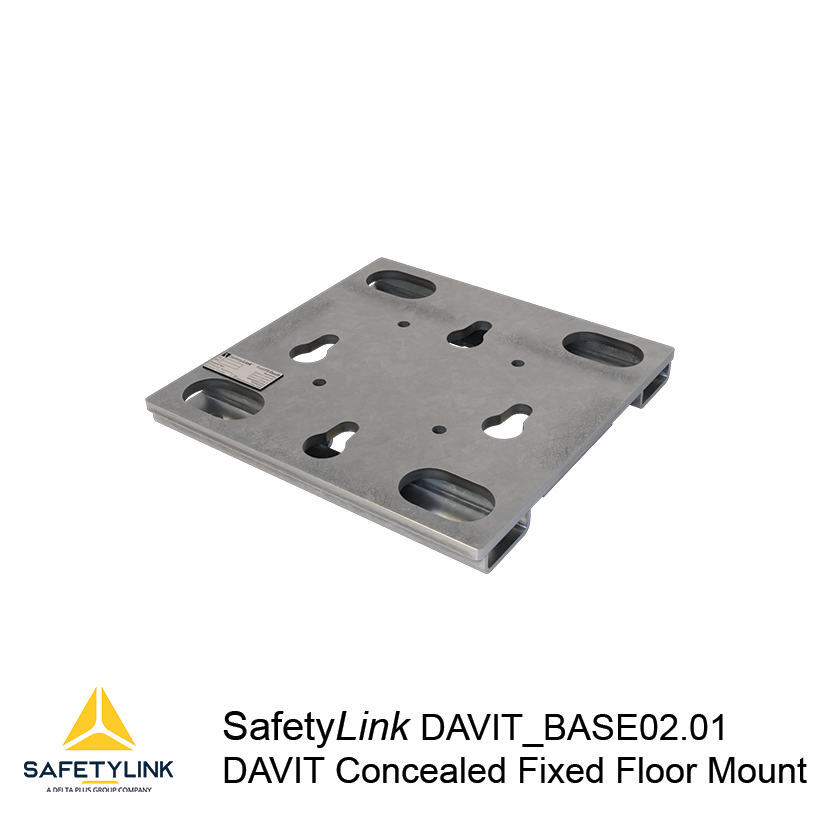

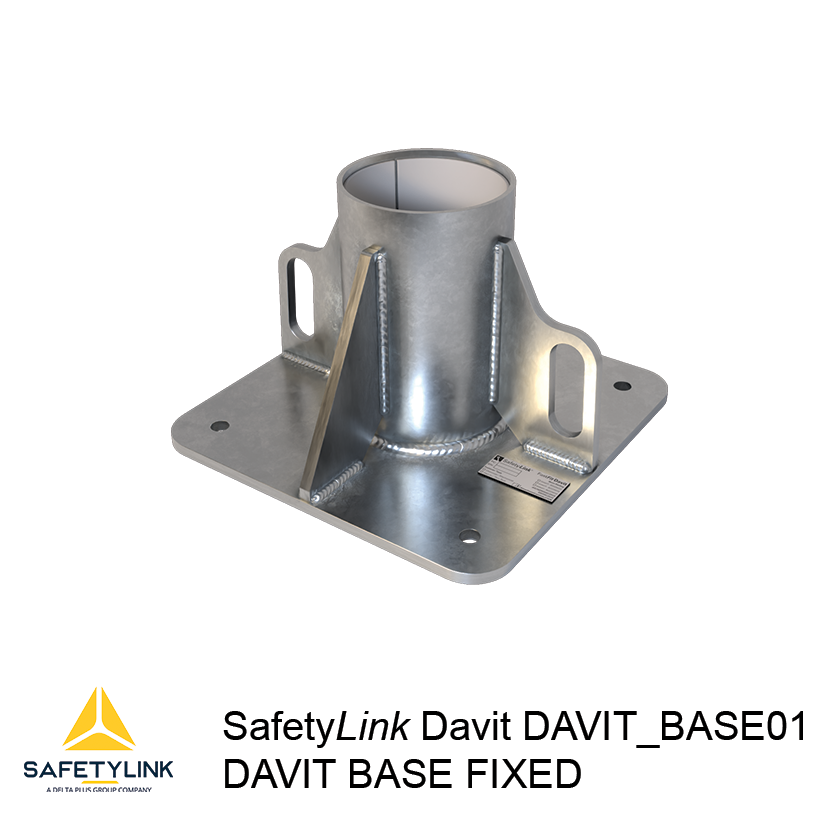

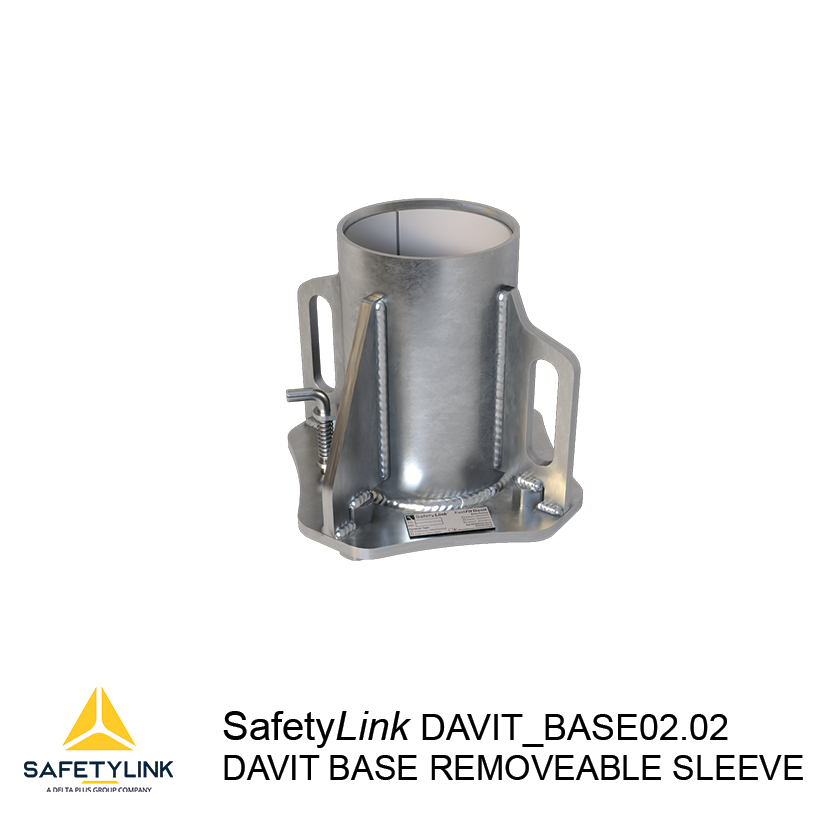

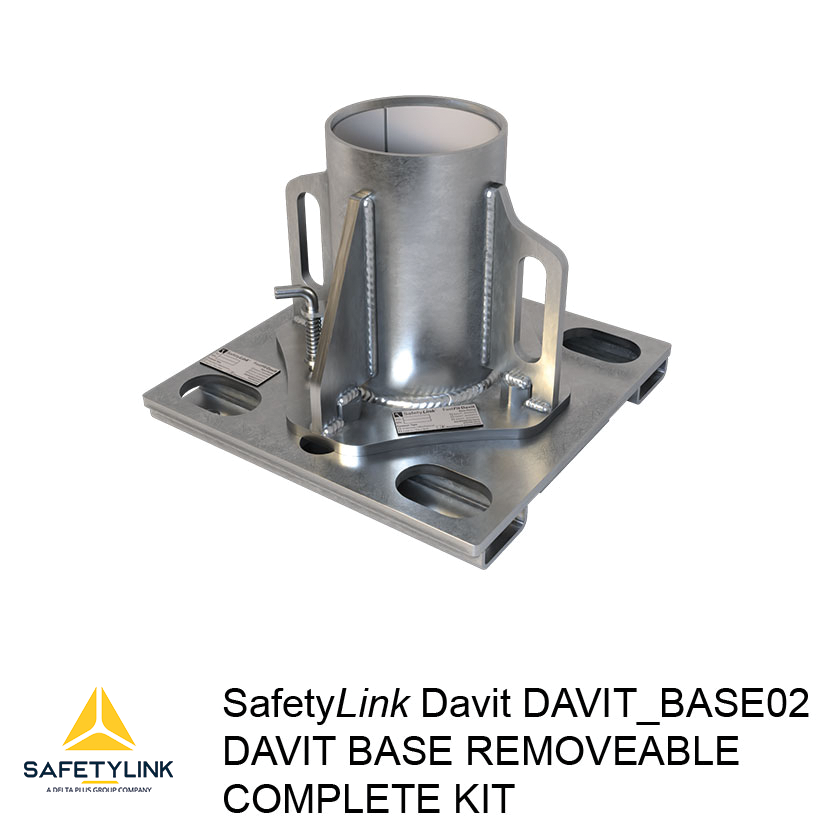

- Choice of retro fit or pre cast mounted. Base options include both fixed and removable floor mount and fixed wall mount for base access.
FALL PROTECTION RATING
The FastFit Davit is rated for one user with a maximum weight of 150kg suspended from the shuttle and one user connected to either of the secondary attachment points.
MATERIALS HANDLING
The Davit may be used to lift materials. Davits used for material lifting purposes shall not be used for supporting a user, see manual for maximum loads allowed on Davit Booms.
STANDARDS
The FastFit Davit Temporary Anchor System is compliant with AS/NZS 5532 and EN795.
SafetyLink’s FastFit Davit System is designed to achieve access to a wide range of scenarios, forming a complete system.
